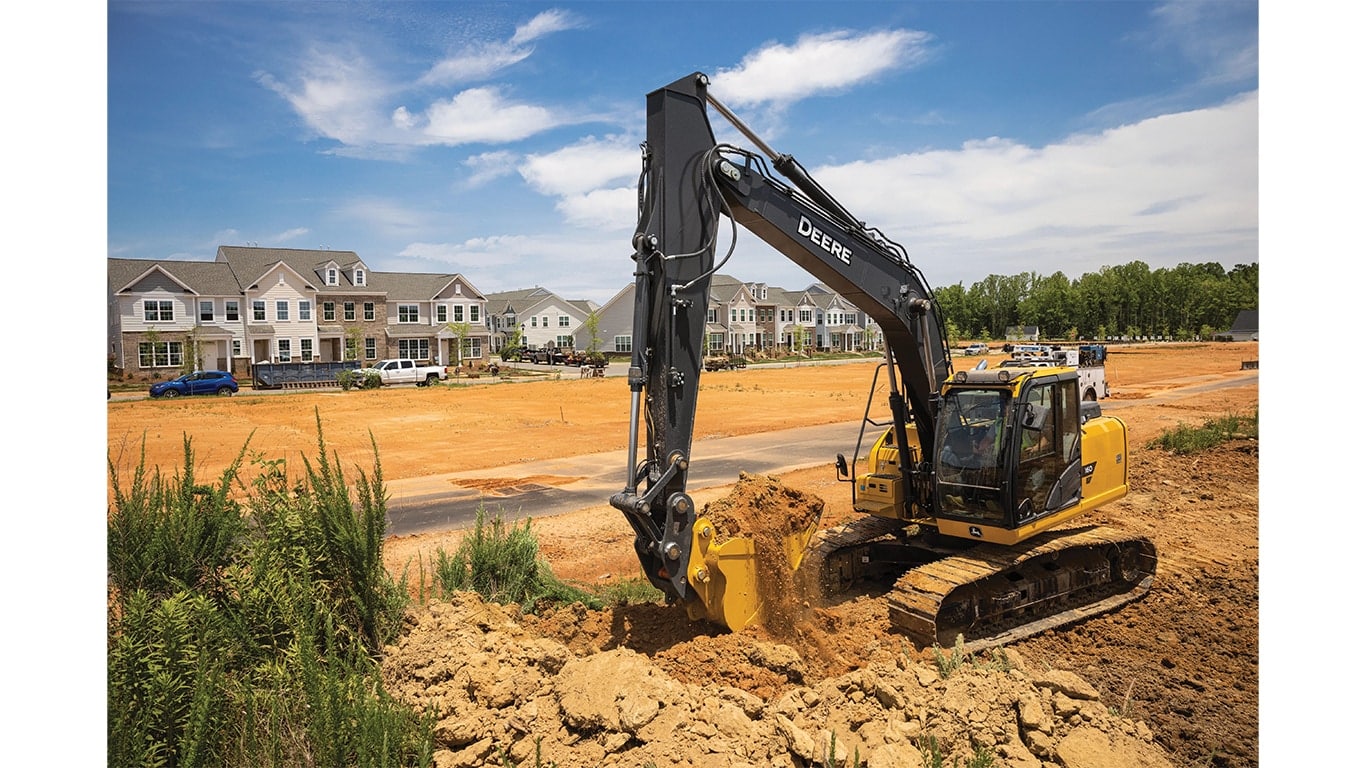

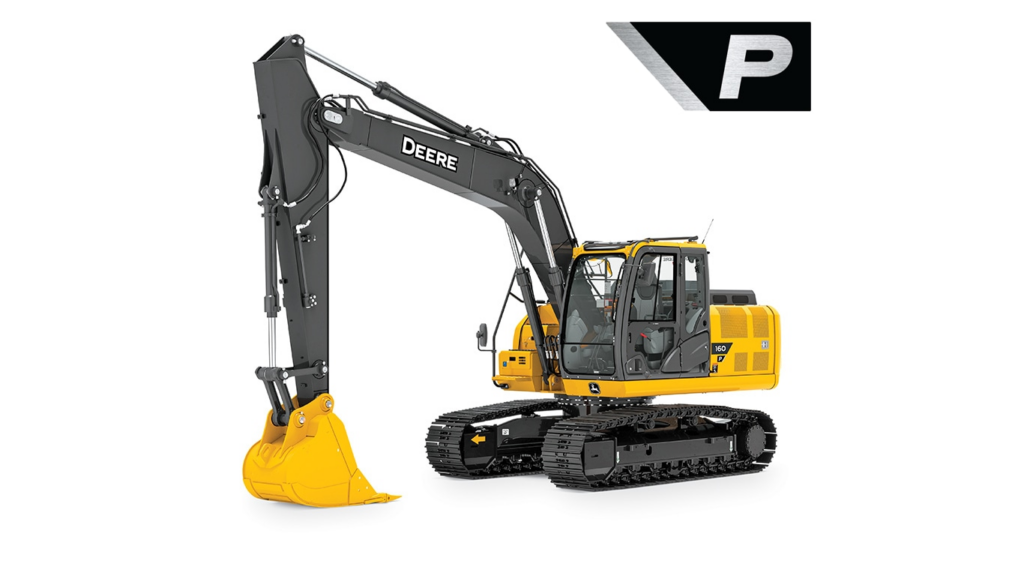

John Deere 160 P-Tier Mid-Size Excavator
- Net Power: 90 kW (122 hp)
- Max. Digging Depth: 6.49 m (21 ft. 4 in.)
- Operating Weight: 17 945 kg (39,526 lb.)
Improved Front Joint Durability
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Redesigned boom foot bushings improve durability.
Quickly Change Attachments with Integrated Hydraulic Coupler Ready Option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Work Confidently via Optional Cameras and Lighting
Right, Rear, and Left Cameras with additional light-emitting diode (LED) Surround Lighting
Overview
Optional Right Rear and Left Camera system with additional LED surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Driveline
| Displacement, ltr (Inches³) | 4.5 (275) |
|---|---|
| Engine Manufacturer | John Deere Power Tech |
| Rated speed, rpm | 2200 |
| Number Of Track Rollers - Each Side | 7 |
| Number Of Cylinders | 4 |
| Number Of Carrier Rollers - Each Side | 2 |
| Engine Output - Net, kW (hp) | 90 (122) |
| Track Shoe Width, mm (inches) | 600 (24) |
| Emission Rating | Tier 4 / Stage IV |
Performance
| Swing Torque, kNm (lbf / ft) | 44 (32353) |
|---|---|
| Swing Speed, rpm | 13.3 |
| Arm Tearout, kN (lbf) | 81 (18210) |
| Travel Speed - High, kph (mph) | 5.3 (3.3) |
| Bucket Breakout, kN (lbf) | 112 (25180) |
| Tractive Force, kN (lbf) | 169 (38030) |
| Bucket Pressure, bar (PSI) | 343 (4980) |
| Ground Bearing Pressure, kPa (PSI) | 41 (5.95) |
| Total Flow, lt/min (gallons (US) / min) | 382 (100) |
| End lift - 7.5m Reach, kg (lbs) | 3500 (7550) |
| Gradeability, % | 70 |
| Side lift - 7.5m Reach, kg (lbs) | 2270 (4890) |
| Boost Pressure, bar (PSI) | 380 (5511) |
Dimensions
| Track Gauge, mm (ft/in) | 1990 (6 ft 6 in) |
|---|---|
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 6270 (20 ft 7 in) |
| Width over fixed tracks, mm (ft/in) | 2590 (8 ft 6 in) |
| Overall Undercarriage Length, mm (ft/in) | 3920 (12 ft 10 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 6490 (21 ft 4 in) |
| Tailswing Radius, mm (ft/in) | 2550 (8 ft 4 in) |
| Ground Clearance, mm (inches) | 470 (19) |
| Digging Reach - Mono Boom, mm (ft/in) | 9330 (30 ft 7 in) |
| Track Length On Ground, mm (ft/in) | 3100 (10 ft 2 in) |
| Transport Length Mono Boom, mm (ft/in) | 8650 (28 ft 5 in) |
| Ground Level Reach - Mono Boom, mm (ft/in) | 9160 (30 ft 1 in) |
| Transport Height - Maximum, mm (ft/in) | 3110 (10 ft 2 in) |
| Overall Undercarriage Width, mm (ft/in) | 2590 (8 ft 6 in) |
| Dump Height - Mono Boom, mm (ft/in) | 6400 (21 ft ) |
| Dig Height - Mono Boom, mm (ft/in) | 9130 (29 ft 11 in) |
Capacities
| Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 125 (33) |
Weights
| Operating Weight, kg (lbs) | 17945 (39526) |
|---|
- Net Rated Power: 90 kW (122 hp)
- Max Digging Depth: 6.49 m (21 ft. 4 in.)
- Operating Weight: 17,945 kg (39,526 lb.)
