Available Compact Excavator Models:

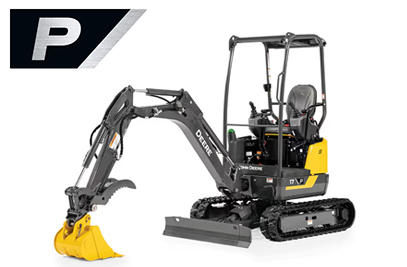

17
17 P-Tier

Power: 14.5 hp
Max. Dig Depth: 7 ft. 2 in.
Operating Weight: 3,800 lbs.

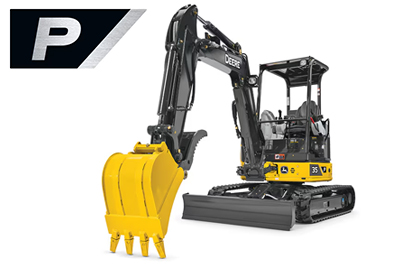

35
35 P-Tier

Power: 23.3 hp
Max. Dig Depth: 10 ft. 0 in.
Operating Weight: 7,800 lbs.

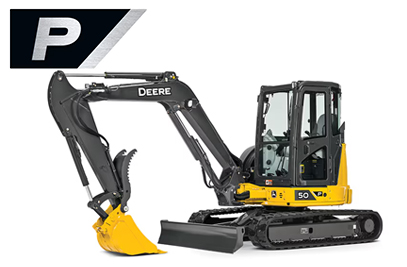

50
50 P-Tier

Power: 35.9 hp
Max. Dig Depth: 11 ft. 7 in.
Operating Weight: 10,600 lbs.

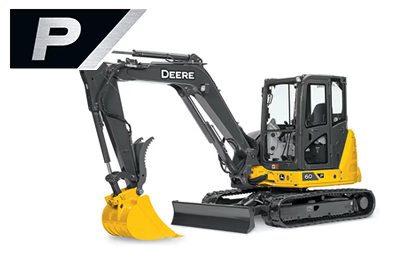

60
60 P-Tier

Power: 53 hp
Max. Dig Depth: 12 ft. 4 in.
Operating Weight: 13,700 lbs.

Compatible attachments:

Hydraulic Breaker Hydraulic Auger

Specs comparison:

Specification 17P 35P 50P 60P
Net HP 18.5 hp 23.3 hp 35.9 hp 53 hp
Operating Weight 3,920 lb 8,135 lb 10,847 lb 13,620 lb
Max Dig Depth 7 ft 10 in 10 ft 0 in 11 ft 7 in 12 ft 4 in
Transport Length 11 ft 9 in 15 ft 3 in 17 ft 11 in 18 ft 11 in
Width 3 ft 3 in 5 ft 9 in 6 ft 7 in 6 ft 7 in
Height (to cab) 7 ft 9 in 8 ft 2 in 8 ft 4 in 8 ft 4 in
Tail Swing Type Reduced Conventional Reduced Reduced
Typical Class 1.7 ton 3.5 ton 5 ton 6 ton

Frequently asked questions:

What are compact excavators used for?

  • Trenching (utilities, drainage)
  • Foundations and footings
  • Landscaping and grading
  • Demolition (light structures)
  • Site prep and drainage work

What is the difference between zero tail swing and conventional tail swing?

  • Zero tail swing (ZTS):
    • Rear stays within track width
    • Ideal for tight spaces near buildings
  • Conventional tail swing:
    • Extends beyond tracks
    • Better stability and lifting capacity

How deep can they dig?

Approximate digging depths:

  • Small models (17G): ~7 ft
  • Mid-size (35G): ~10 ft
  • Larger compact (75G): ~15 ft

What attachments can be used?

Common attachments include:

  • Buckets (trenching, grading, ditching)
  • Hydraulic thumbs
  • Augers
  • Breakers (hammers)
  • Compactors
  • Grapples

What is auxiliary hydraulics?

Auxiliary hydraulics provide power to attachments like augers and breakers. Many Deere models offer:

  • Standard flow
  • High-flow options (on larger units)

How much do they weigh?

Typical operating weights:

  • 17G: ~3,800 lbs
  • 35G: ~8,000 lbs
  • 60G: ~13,500 lbs
  • 75G+: up to ~19,000 lbs

Are they easy to transport?

Yes—most are designed for easy transport:

  • Smaller units: can be towed with a ½-ton or ¾-ton truck
  • Larger units: require a heavier truck and trailer

What kind of fuel consumption do they have?

Typically:

  • Small units: ~0.5–1.5 gallons/hour
  • Larger compact units: ~2–3 gallons/hour

What maintenance is required?

  • Daily: fluid checks, track inspection
  • Every 250 hours: oil and filters
  • Regular: grease all pivot points, inspect hydraulics

Are John Deere compact excavators comfortable?

Yes—features often include:

  • Enclosed cab with heat/AC (on larger models)
  • Adjustable suspension seat
  • Pilot controls or ISO pattern controls
  • Excellent visibility

What is the control pattern (ISO vs SAE)?

  • ISO (excavator pattern) – most common
  • SAE (backhoe pattern)

Many Deere machines allow switching between patterns.

Can they work on finished lawns or pavement?

Yes—with care:

  • Rubber tracks minimize damage
  • Still can mark surfaces during turns
  • Use plywood or mats for protection if needed

What are angle blades?

Some models offer angle blades, allowing side-to-side grading without repositioning the machine—very useful for:

  • Backfilling trenches
  • Fine grading
  • Snow work
