Compact Construction Equipment
RENTALS: Compact Track Loaders
Compact Construction Equipment
RENTALS: Compact Track Loaders
Available Compact Track Loader Models:
Power: 65 hp
Operating weight: 8,423 lbs.
Operating capacity: 2,125 lbs.
Power: 74 hp
Operating weight: 9,500 lbs.
Operating capacity: 2,590 lbs.
Power: 98 hp
Operating weight: 11,914 lbs.
Operating capacity: 3,150 lbs.
Power: 108.5 hp
Operating weight: 12,183 lbs.
Operating capacity: 3,850 lbs.
Compatible attachments:
 Angle Broom |
 Hydraulic Auger |
 Pickup Broom |
 Power Rake |
 Hydraulic Breaker |
 Pallet Forks |
Specs comparison:

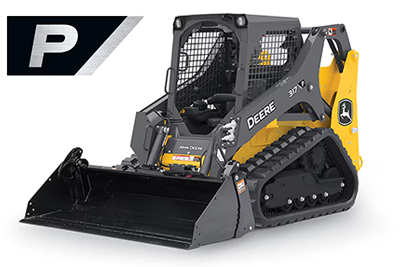

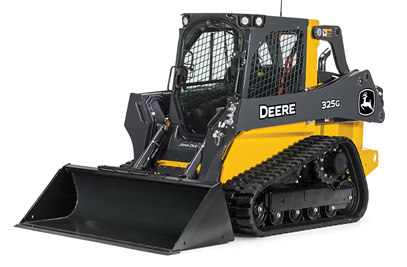

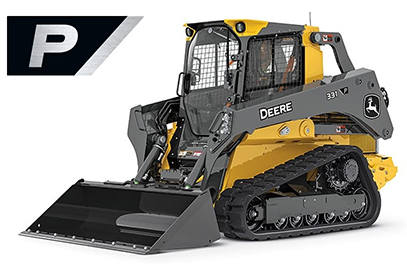

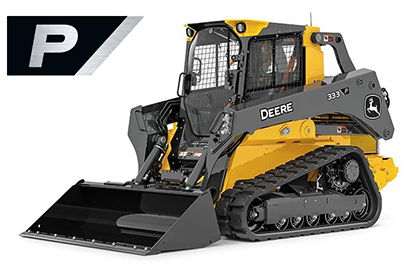

| Specifications | 317 P-Tier | 325G | 331 P-Tier | 333 P-Tier |
| Engine Gross HP | 65 hp | 74 hp | 98 hp | 108.5 hp |
| Net HP | 61 hp | 70 hp | 95 hp | 105.8 hp |
| Rated Operating Capacit | 2,125 lb | 2,590 lb | 3,150 lb | 3,850 lb |
| Operating Weight | 8,423 lb | 9,500 lb | 11,914 lb | 12,183 lb |
| Lift Design | Vertical | Vertical | Vertical | Vertical |
| Breakout Force | — | — | 11,000 lb | 13,750 lb |
| Length (no bucket) | 103 in | 112.3 in | 125 in | 125 in |
| Length (with bucket) | 127.6 in | 136.4 in | 151.2 in | 151.2 in |
| Width (no bucket) | 65.1 in | 72.6 in | 78.9 in | 78.9 in |
| Height (to top of cab) | 78 in | 79.2 in | 81.7 in | 81.7 in |
Frequently asked questions:
What are the advantages of tracks over wheels?
- Better traction in mud, snow, and sand
- Reduced ground disturbance (good for landscaping)
- Increased stability on slopes
- Smoother ride over rough terrain
What can a John Deere CTL be used for?
They’re extremely versatile and commonly used for:
- Landscaping and grading
- Excavation and trenching
- Snow removal
- Forestry and land clearing
- Construction site work
What attachments are compatible?
John Deere CTLs support a wide range of attachments, such as:
- Buckets (general purpose, rock, grading)
- Pallet forks
- Augers
- Brush cutters
- Snow pushers/blowers
- Grapples
Most use a universal quick-attach system.
What is the rated operating capacity (ROC)?
ROC is the maximum weight the machine can safely lift.
- Smaller models: ~1,900–2,200 lbs
- Larger models (like 331G): up to ~3,100+ lbs
What is the difference between vertical lift and radial lift?
- Vertical lift: Better for lifting and loading trucks (higher reach)
- Radial lift: Better for digging and ground-level work
Most John Deere CTLs use vertical lift designs.
What is the typical maintenance required?
Typical intervals:
- Daily: check fluids, inspect tracks
- Every 250 hours: oil and filter changes
- Every 500–1,000 hours: more in-depth service
Always follow the operator’s manual.
What is the average fuel consumption?
Varies by model and workload, but generally:
- ~2 to 4 gallons per hour under normal use
