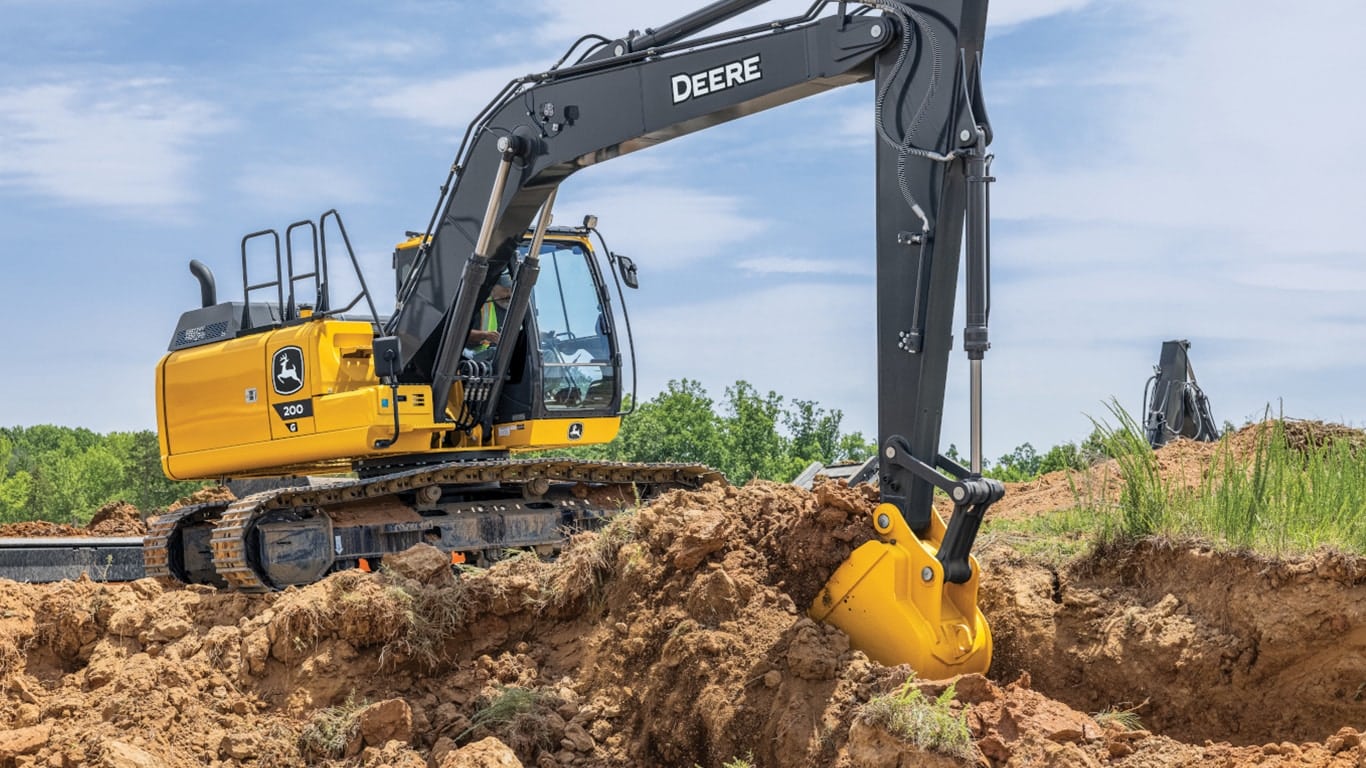

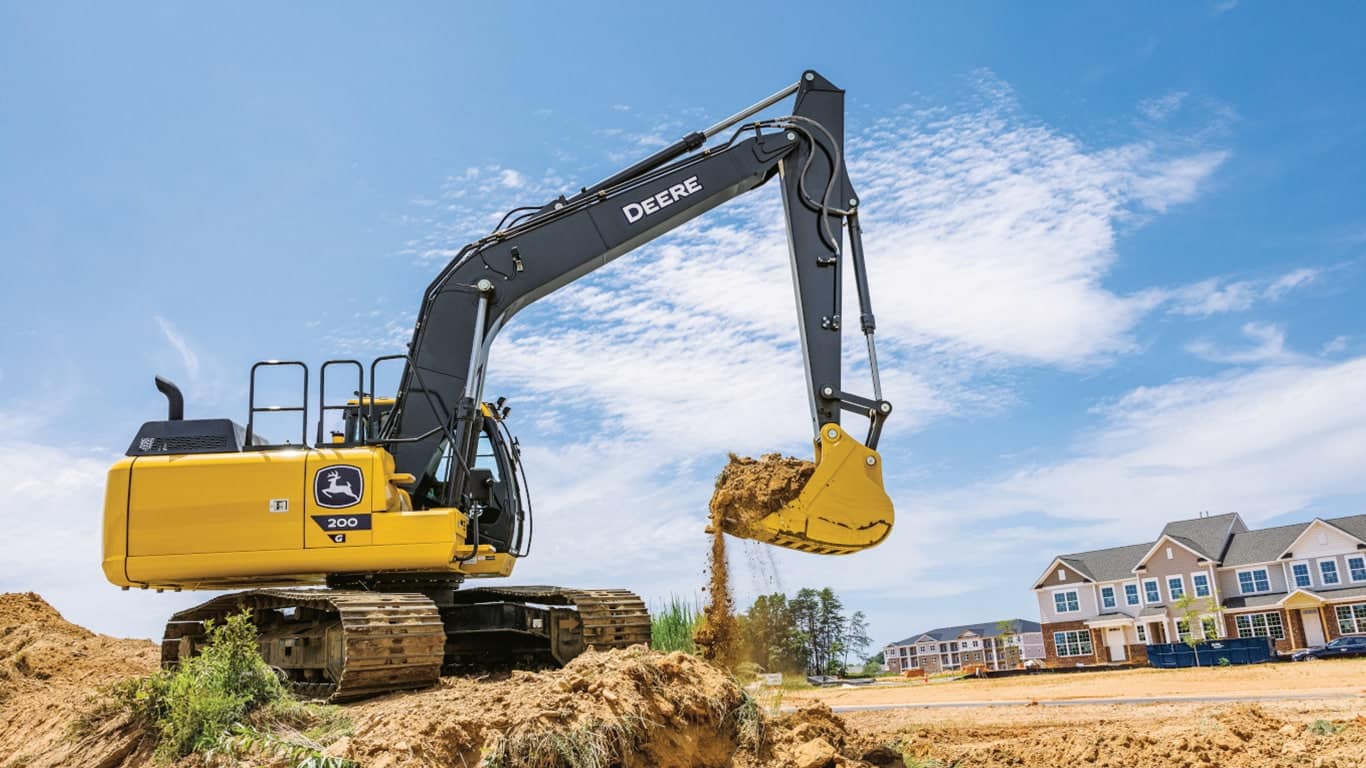

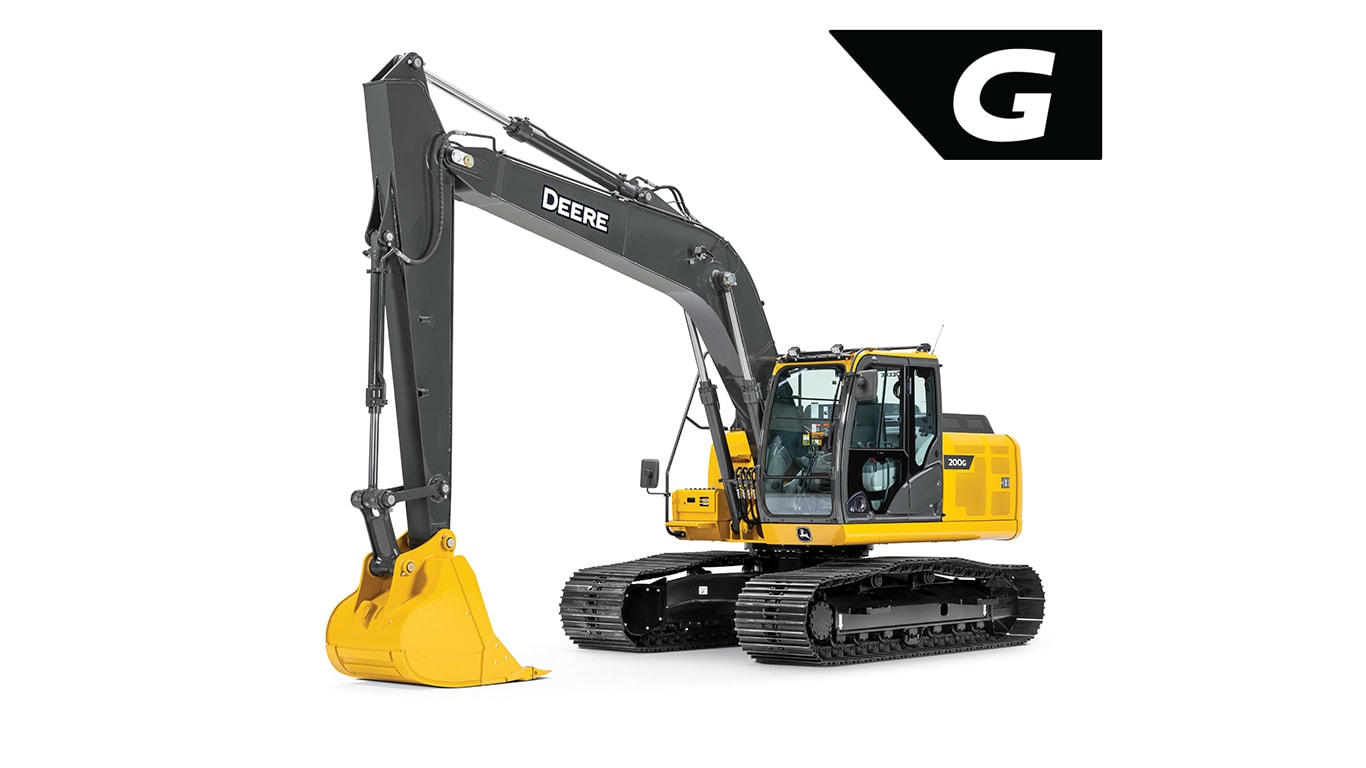

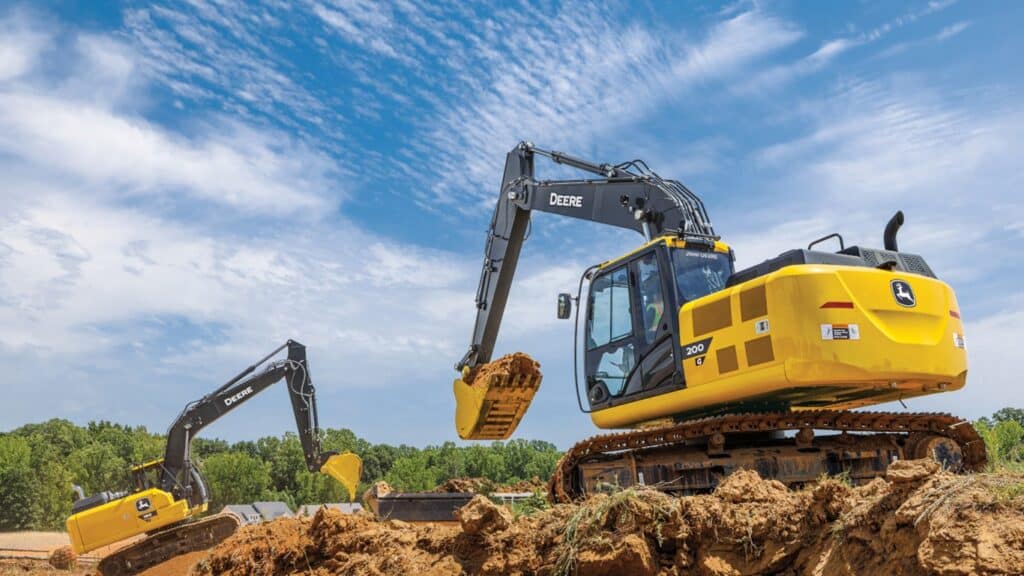

John Deere 200 G-Tier Mid-Size Excavator
- Net Power: 109 kW (146 hp)
- Max. Digging Depth: 7.07 m (23 ft. 2 in.)
- Operating Weight: 20 507 kg (45,170 lb.)
Improved Front Joint Durability
Central lubrication at arm tip
Two-piece front pipe clamping
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Redesigned boom foot bushings improve durability.
Quickly Change Attachments with Integrated Hydraulic Coupler Ready Option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Dimensions
| Ground Level Reach - Mono Boom, mm (ft/in) | 9790 (32 ft 1 in) |
|---|---|
| Track Gauge, mm (ft/in) | 2200 (7 ft 3 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 9940 (32 ft 7 in) |
| Overall Undercarriage Width, mm (ft/in) | 3000 (9 ft 10 in) |
| Dig Height - Mono Boom, mm (ft/in) | 9790 (32 ft 1 in) |
| Ground Clearance, mm (inches) | 450 (18) |
| Transport Height - Maximum, mm (ft/in) | 3390 (11 ft 1 in) |
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 6870 (22 ft 6 in) |
| Overall Undercarriage Length, mm (ft/in) | 4170 (13 ft 8 in) |
| Width over fixed tracks, mm (ft/in) | 3000 (9 ft 10 in) |
| Track Length On Ground, mm (ft/in) | 3370 (11 ft 1 in) |
| Dump Height - Mono Boom, mm (ft/in) | 6930 (22 ft 9 in) |
| Tailswing Radius, mm (ft/in) | 2550 (8 ft 4 in) |
| Transport Length Mono Boom, mm (ft/in) | 9040 (29 ft 8 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 7070 (23 ft 2 in) |
Performance
| Gradeability, % | 70 |
|---|---|
| Tractive Force, kN (lbf) | 169 (38030) |
| Arm Tearout, kN (lbf) | 83.7 (18825) |
| Total Flow, lt/min (gallons (US) / min) | 382 (100) |
| Ground Bearing Pressure, kPa (PSI) | 32 (4.64) |
| Bucket Pressure, bar (PSI) | 343 (4980) |
| Swing Torque, kNm (lbf / ft) | 50 (36765) |
| End lift - 7.5m Reach, kg (lbs) | 4370 (9420) |
| Bucket Breakout, kN (lbf) | 127 (28552) |
| Boost Pressure, bar (PSI) | 380 (5511) |
| Swing Speed, rpm | 12.8 |
| Side lift - 7.5m Reach, kg (lbs) | 2830 (6110) |
| Travel Speed - High, kph (mph) | 5.3 (3.3) |
Driveline
| Rated speed, rpm | 2000 |
|---|---|
| Emission Rating | Tier 4 / Stage IV |
| Engine Output - Net, kW (hp) | 109 (146) |
| Engine Manufacturer | John Deere Power Tech |
| Number Of Carrier Rollers - Each Side | 2 |
| Number Of Track Rollers - Each Side | 7 |
| Track Shoe Width, mm (inches) | 800 (32) |
| Displacement, ltr (Inches³) | 4.5 (275) |
| Number Of Cylinders | 4 |
Weights
| Operating Weight, kg (lbs) | 20507 (45170) |
|---|
Capacities
| Fuel Tank, ltr (gallons (US)) | 285 (75.3) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 125 (33) |
- Operating Weight: 20,507 kg (45,170 lb.)
- Max Digging Depth: 7.07 m (23 ft. 2 in.)
- Net Rated Power: 109 kW (146 hp)
