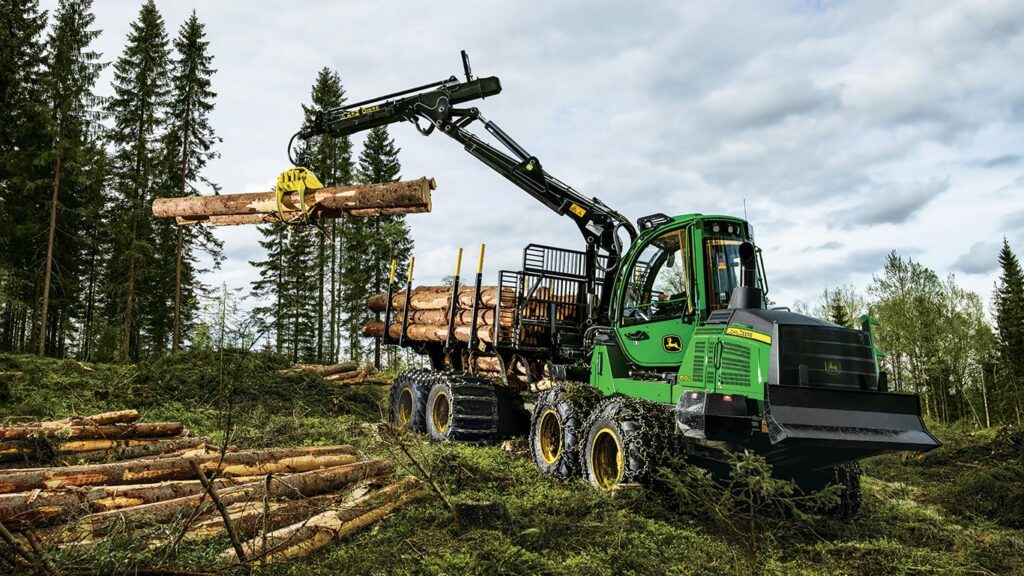

John Deere 1510G Forwarder
- Net Power: 164 kW (220 hp) at 1,700–1,900 rpm
- Boom Reach: 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
- Tractive Force: 185 kN (41,588 lbf)
- Load Rating: 15 000 kg (33,069 lb.)
Long Bogie
Long-bogie versions deliver more ground pressure for logging in soft terrain, as well as better stability in rocky conditions.
TimberMatic™ Control System
TimberMatic F-12 control system delivers fine-tuned hydraulics, for effortlessly smooth forwarder functions.
Self-Leveling Cab
Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.
Intelligent Boom Control
- Optional Intelligent Boom Control eases boom operations, making them more precise and productive.
- Joysticks are configurable to user preference, so operators can run IBC using their preferred control patter.
TimberLink™ Automatic Monitoring
- Exclusive TimberLink automatic monitoring system keeps an eye on operating costs while tracking machine performance and efficiency.
- Work-cycle information, such as loading and driving times can be used to fine-tune settings and improve operator technique.
Dimensions
| Base Carrier Length, mm (inches) | 9820 (386.4) |
|---|---|
| Ground Clearance, mm (inches) | 660 (26) |
| Load Length, mm (inches) | 4500 (177.6) |
| Transport Height, mm (inches) | 3800 (150) |
| Width - Fixed Bunk, mm (inches) | 2958 (116.4) |
| Width, mm (inches) | 2956 (116.4) |
| Wheelbase, mm (inches) | 4900 (193.2) |
| Horizontal Reach, m (ft/in) | 7.2 (23 ft 7 in) |
Driveline
| Engine Output, kW (hp) | 164 (220) |
|---|---|
| Engine Torque, Nm (lbf / ft) | 978 (721) |
| Std tire size rear | 26.5 - 20 |
| Displacement, ltr (Inches³) | 6.8 (414.9) |
| Engine Model | PowerTech Plus 6068 |
| Drive Configuration | 8 x 8 |
| Transmission | Hydrostatic-Mechanical |
| Std tire size front | 26.5 - 20 |
| Engine Manufacturer | John Deere |
Weights
| Operating Weight, kg (lbs) | 18230 (40190) |
|---|
Performance
| Lifting Moment - Standard Crane, kNm (lbf / ft) | 125 (92) |
|---|---|
| Load Capacity, tonnes (tons (short)) | 15 (16.534) |
| System Voltage, V | 24 |
| Travel Speed, kph (mph) | 23 (14.3) |
| Tractive Force, kN (lbf) | 185 (41588) |
| Pump Capacity, cm³ (Inches³) | 180 (11) |
Capacities
| Fuel Tank, ltr (gallons (US)) | 167 (44) |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 161 (43) |
| Alternator Output, Amp | 150 |
