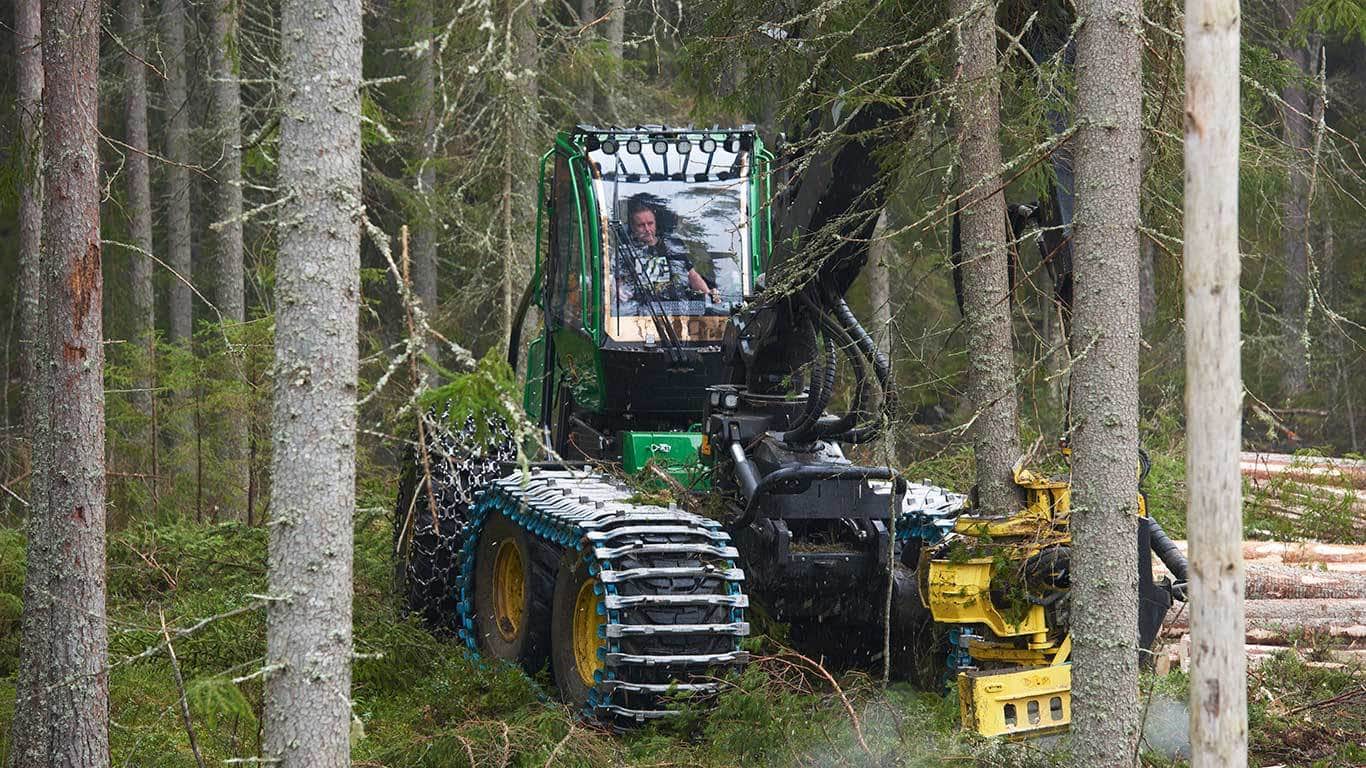

John Deere 1470G Wheeled Harvester
- Net Power: 200 kW (268 hp) at 1,900 rpm
- Pump Capacities: 210 cm3 (13 cu. in.) / 180 cm3 (11 cu. in.)
- Boom Reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.0 m (36.1 ft.)
Twin-Pump Hydraulics
- Twin-pump hydraulic system that delivers simultaneous power to the boom and harvester head.
Intelligent Boom Control
• A first in the harvester category, IBC provides operators with increased accuracy and productivity — bringing harvester capabilities to a whole new level.
• With IBC, the operator controls only the harvester head while the system takes care of the boom’s movement. Designed specifically to suit the harvester work cycle, the boom’s movement and operation automatically adjust as the boom is taken to a tree and when the tree is in the grapple. IBC enables precise working and the selection of the correct working methods.
Standard Intelligent Control
- Processing Power Control (PPC) lowers operating costs and increases productivity by five to 15 percent by balancing processing power and fuel economy in a variety of logging applications.
Updated Windows
RENCRAFT® Super Hard Coat polycarbonate windows are scratch resistant, tolerant of cleaning agents, and enhance optic quality. These windows comply with the ISO 21876 saw-chain shot-testing standard, proving their durability. Plus, due to their almost 50-percent thicker material than previous windows, the cab is better insulated, resulting in a quieter work environment.
Driveline
| Engine Model | 6090HTJ |
|---|---|
| Engine Torque, Nm (lbf / ft) | 1250 (922) |
| Std tire size front | 26.5 |
| Emission Rating | Tier 3 |
| Engine Output, kW (hp) | 190 (255) |
| Drive Configuration | 8 x 8 |
| Engine Manufacturer | John Deere |
| Rated Speed, rpm | 1900 |
| Transmission Type | Hydrostatic-Mechanical |
| Std tire size rear | 26.5 |
Dimensions
| Horizontal Reach, m (ft/in) | 8.6 (28 ft 2 in) |
|---|---|
| Transport Height, mm (inches) | 3910 (153.84) |
| Base Carrier Length, mm (inches) | 7944 (312.72) |
| Overall Width, mm (inches) | 2990 (117.72) |
| Ground Clearance, mm (inches) | 754 (29.7) |
| Wheelbase, mm (inches) | 4270 (168.12) |
Capacities
| Reference Harvesting Head | H480C |
|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 300 (79) |
| Pump Capacity, cm³ (Inches³) | 190 (12) |
| Delimbing Diameter, mm (inches) | 680 (26.8) |
| Delimbing Feed Force, kN (lbf) | 30 (6744) |
| Number Of Alternators | 1 |
| Fuel Tank, ltr (gallons (US)) | 450 (119) |
| Felling Diameter, mm (inches) | 710 (28) |
| Delimbing Feed Rate, m/sec (ft/sec) | 5.3 (17.4) |
| System Voltage, V | 24 |
| Travel Speed, kph (mph) | 21 (13) |
Description
| Crane Model | CH9 |
|---|
Weights
| Operating Weight, kg (lbs) | 24250 (53462) |
|---|---|
| Weight - With Reference Head, kg (lbs) | 24250 (53462) |
| Weight - Without Reference Head, kg (lbs) | 23010 (50728) |
